Studless Winter Tire
Product development
Excellent Snow Braking
Superior Handling Performance
Excellent Mute Comfortable
Product performance
The soft tread formula ,unique pattern design and the structure in the matrix to provide excellent traction and braking performance at the same time, but also meet the requirements of control performance in the ice and snow weather, the overall performance is the important guarantee of winter ice road safety performance.
PRODUCT FEATURE
PRODUCT SPECIFICATION
-
-
Excellent Mute Comfortable

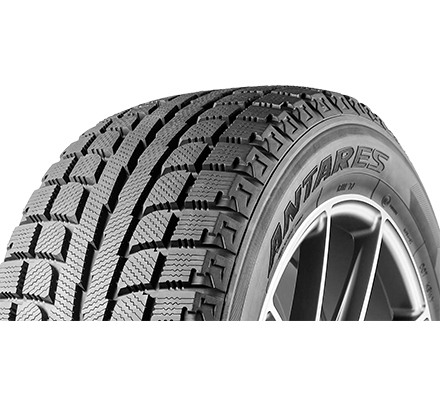

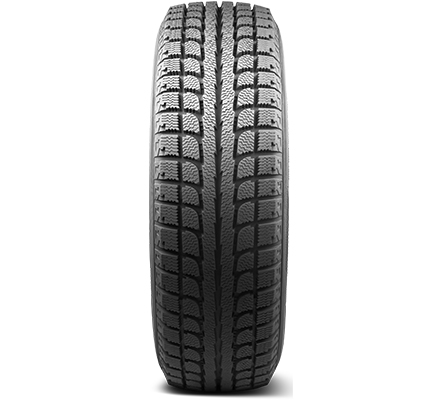

Using symmetrical herringbone pattern design, and the coarse block by widening of the transverse groove,fine steel sheet and shoulder block optimization steel nail arrangement, performed and equipped with studded pattern series to ensure the tyre running on the ice and snow road providing more safety guarantee.
-
-
Superior Handling Performance
The special soft material formula in the tread formula keep soft tread type in a cold environment, increasing friction and ice road effectively, enhance the tyre handling and safety in the snow and ice road.
-
-
Excellent Low Temperature
A.Optimize the multi frequency design by computer, and ajust the tread pattern of the inclined arrangement, the open pattern, groove design, etc., effectively suppresses the tyre noise when driving.
B.High density tread block steel sheet designed to reduce tread hardness, to enhance the comfort of driving.
PCR SIZE
| PATTERN | SIZE | LOAD INDEX | SPEED RATING | EXTRA LOAD | PR | TREAD DEPTH (MM) | MAX. PRESSURE(kPa) | MAX. PRESSURE(psi) | RIM SIZE |
|---|---|---|---|---|---|---|---|---|---|
| GRIP 20 | 165/70R13 | 79 | T | - | 8.1 | 250 | 36 | 5.00B | |
| GRIP 20 | 175/70R13 | 82 | T | - | 8.1 | 250 | 36 | 5.00B | |
| GRIP 20 | 155/80R13 | 79 | T | - | 8.1 | 240 | 35 | 4.50B | |
| GRIP 20 | 195/70R14 | 91 | S | - | 8.5 | 250 | 36 | 6J | |
| GRIP 20 | 155/65R14 | 75 | T | - | 8.1 | 250 | 36 | 4½J | |
| GRIP 20 | 185/70R14 | 88 | T | - | 8.5 | 250 | 36 | 5½J | |
| GRIP 20 | 165/70R14 | 81 | T | - | 8.1 | 250 | 36 | 5J | |
| GRIP 20 | 185/65R14 | 86 | H | - | 8.5 | 250 | 36 | 5½J | |
| GRIP 20 | 175/65R14 | 82 | H | - | 8.5 | 250 | 36 | 5J | |
| GRIP 20 | 175/70R14 | 84 | T | - | 8.1 | 250 | 36 | 5J | |
| GRIP 20 | 185/60R14 | 82 | H | - | 8.5 | 250 | 36 | 5½J | |
| GRIP 20 | 195/60R14 | 86 | H | - | 8.5 | 250 | 36 | 6J | |
| GRIP 20 | 185/60R15 | 88 | H | XL | - | 8.1 | 290 | 42 | 5½J |
| GRIP 20 | 185/65R15 | 88 | H | - | 8.5 | 250 | 36 | 5½J | |
| GRIP 20 | 195/55R15 | 85 | H | - | 8.7 | 250 | 36 | 6J | |
| GRIP 20 | 195/60R15 | 88 | H | - | 8.5 | 250 | 36 | 6J | |
| GRIP 20 | 195/65R15 | 91 | H | - | 8.1 | 250 | 36 | 6J | |
| GRIP 20 | 215/75R15 | 100 | S | - | 8.5 | 250 | 36 | 6J | |
| GRIP 20 | 175/65R15 | 84 | T | - | 8.1 | 250 | 36 | 5J | |
| GRIP 20 | 205/70R15 | 96 | T | - | 8.1 | 250 | 36 | 6J | |
| GRIP 20 | 205/60R15 | 91 | H | - | 8.1 | 250 | 36 | 6J | |
| GRIP 20 | 215/70R15 | 98 | S | - | 8.1 | 250 | 36 | 6½J | |
| GRIP 20 | 225/70R15 | 100 | S | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 225/75R15 | 102 | S | - | 8.5 | 250 | 36 | 6J | |
| GRIP 20 | 235/75R15 | 105 | S | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 205/65R15 | 94 | S | - | 8.5 | 250 | 36 | 6J | |
| GRIP 20 | 205/55R16 | 91 | H | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 205/60R16 | 96 | H | XL | - | 8.1 | 290 | 42 | 6J |
| GRIP 20 | 215/55R16 | 93 | H | - | 8.5 | 250 | 36 | 7J | |
| GRIP 20 | 265/70R16 | 112 | S | - | 8.5 | 250 | 36 | 8J | |
| GRIP 20 | 205/65R16 | 95 | T | - | 11.0 | 250 | 36 | 6J | |
| GRIP 20 | 225/55R16 | 95 | H | - | 8.5 | 250 | 36 | 7J | |
| GRIP 20 | 225/70R16 | 107 | S | XL | - | 8.5 | 290 | 42 | 6½J |
| GRIP 20 | 275/70R16 | 114 | S | - | 8.5 | 250 | 36 | 8J | |
| GRIP 20 | 205/50R16 | 87 | H | - | 8.1 | 250 | 36 | 6½J | |
| GRIP 20 | 195/60R16 | 89 | H | - | 8.5 | 250 | 36 | 6J | |
| GRIP 20 | 225/60R16 | 98 | T | - | 8.1 | 250 | 36 | 6½J | |
| GRIP 20 | 245/70R16 | 107 | S | - | 8.5 | 250 | 36 | 7J | |
| GRIP 20 | 255/70R16 | 111 | S | - | 8.5 | 250 | 36 | 7½J | |
| GRIP 20 | 225/75R16 | 104 | S | - | 8.5 | 250 | 36 | 6J | |
| GRIP 20 | 245/75R16 | 111 | S | - | 8.5 | 250 | 36 | 7J | |
| GRIP 20 | 235/70R16 | 106 | S | - | 8.5 | 250 | 36 | 7J | |
| GRIP 20 | 215/65R16 | 98 | S | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 215/60R16 | 95 | T | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 215/70R16 | 100 | S | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 225/65R16 | 100 | S | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 235/65R16 | 103 | S | - | 8.5 | 250 | 36 | 7J | |
| GRIP 20 | 215/55R17 | 98 | H | XL | - | 8.1 | 290 | 42 | 7J |
| GRIP 20 | 215/60R17 | 96 | T | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 225/50R17 | 98 | H | XL | - | 8.1 | 320 | 46 | 7J |
| GRIP 20 | 225/65R17 | 102 | S | - | 10.3 | 250 | 36 | 6½J | |
| GRIP 20 | 215/45R17 | 87 | H | - | 8.5 | 280 | 41 | 7J | |
| GRIP 20 | 225/45R17 | 94 | H | XL | - | 8.1 | 290 | 42 | 7½J |
| GRIP 20 | 215/50R17 | 95 | H | XL | - | 8.5 | 320 | 46 | 7J |
| GRIP 20 | 205/50R17 | 93 | H | XL | - | 8.5 | 320 | 46 | 6½J |
| GRIP 20 | 215/65R17 | 99 | T | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 205/45R17 | 88 | H | XL | - | 8.1 | 290 | 42 | 7J |
| GRIP 20 | 235/45R17 | 97 | H | XL | - | 8.5 | 320 | 46 | 8J |
| GRIP 20 | 245/50R17 | 99 | H | - | 8.5 | 280 | 41 | 7½J | |
| GRIP 20 | 235/60R17 | 102 | T | - | 8.1 | 250 | 36 | 7J | |
| GRIP 20 | 265/65R17 | 112 | S | - | 8.5 | 250 | 36 | 8J | |
| GRIP 20 | 245/70R17 | 110 | S | - | 8.5 | 250 | 36 | 7J | |
| GRIP 20 | 265/70R17 | 115 | S | - | 8.5 | 250 | 36 | 8J | |
| GRIP 20 | 235/65R17 | 108 | S | XL | - | 8.5 | 320 | 46 | 7J |
| GRIP 20 | 225/60R17 | 99 | T | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 245/65R17 | 111 | S | XL | - | 8.5 | 290 | 42 | 7J |
| GRIP 20 | 275/65R17 | 115 | S | - | 8.5 | 250 | 36 | 8J | |
| GRIP 20 | 285/65R17 | 116 | S | - | 8.5 | 250 | 36 | 8½J | |
| GRIP 20 | 275/60R17 | 110 | S | - | 8.5 | 250 | 36 | 8J | |
| GRIP 20 | 225/55R17 | 101 | T | XL | - | 8.5 | 320 | 46 | 7J |
| GRIP 20 | 235/55R17 | 103 | T | XL | - | 8.5 | 320 | 46 | 7½J |
| GRIP 20 | 225/40R18 | 92 | H | XL | - | 8.1 | 290 | 42 | 8J |
| GRIP 20 | 225/45R18 | 95 | H | XL | - | 8.1 | 290 | 42 | 7½J |
| GRIP 20 | 225/50R18 | 95 | T | - | 8.5 | 250 | 36 | 7J | |
| GRIP 20 | 215/55R18 | 95 | H | - | 8.1 | 250 | 36 | 7J | |
| GRIP 20 | 225/60R18 | 100 | T | - | 8.5 | 250 | 36 | 6½J | |
| GRIP 20 | 235/65R18 | 110 | S | XL | - | 8.5 | 320 | 46 | 7J |
| GRIP 20 | 245/60R18 | 105 | S | - | 8.5 | 250 | 36 | 7J | |
| GRIP 20 | 265/60R18 | 114 | S | XL | - | 8.5 | 290 | 42 | 8J |
| GRIP 20 | 245/55R18 | 103 | T | - | 8.5 | 280 | 41 | 7½J | |
| GRIP 20 | 255/55R18 | 109 | T | XL | - | 8.5 | 320 | 46 | 8J |
| GRIP 20 | 235/50R18 | 101 | T | XL | - | 8.5 | 320 | 46 | 7½J |
| GRIP 20 | 245/45R18 | 100 | T | XL | - | 8.1 | 290 | 42 | 8J |
| GRIP 20 | 225/55R18 | 98 | T | - | 8.5 | 250 | 36 | 7J | |
| GRIP 20 | 235/55R18 | 104 | T | XL | - | 8.5 | 290 | 42 | 7½J |
| GRIP 20 | 235/60R18 | 107 | S | XL | - | 10.3 | 290 | 42 | 7J |
| GRIP 20 | 245/40R18 | 97 | H | XL | - | 8.5 | 320 | 46 | 8½J |
| GRIP 20 | 255/40R18 | 95 | H | - | 8.5 | 280 | 41 | 9J | |
| GRIP 20 | 245/55R19 | 103 | T | - | 8.5 | 250 | 36 | 7½J | |
| GRIP 20 | 225/55R19 | 99 | H | - | 8.5 | 280 | 41 | 7J | |
| GRIP 20 | 255/50R19 | 107 | T | XL | - | 8.1 | 290 | 42 | 8J |
| GRIP 20 | 245/50R20 | 102 | T | - | 8.1 | 250 | 36 | 7½J | |
| GRIP 20 | 255/50R20 | 109 | T | XL | - | 8.5 | 320 | 46 | 8J |
| GRIP 20 | 265/45R20 | 108 | T | XL | - | 8.1 | 290 | 42 | 9J |
LTR SIZE
| PATTERN | SIZE | LOAD INDEX | SPEED RATING | EXTRA LOAD | PR | TREAD DEPTH (MM) | MAX. PRESSURE(kPa) | MAX. PRESSURE(psi) | RIM SIZE |
|---|---|---|---|---|---|---|---|---|---|
| GRIP 20 | 165/70R13C | 88/86 | S | 6 | 8.1 | 375 | 54 | 5.00B | |
| GRIP 20 | 185R14C | 102/100 | Q | 8 | 9.0 | 450 | 65 | 5½J | |
| GRIP 20 | 31×10.50R15LT | 109 | S | 6 | 8.5 | 350 | 51 | 8½J | |
| GRIP 20 | 195/70R15C | 104/102 | S | 8 | 10.0 | 450 | 65 | 6J | |
| GRIP 20 | 195R15C | 106/104 | Q | 8 | 10.0 | 450 | 65 | 5½J | |
| GRIP 20 | 225/70R15C | 112/110 | S | 8 | 8.5 | 475 | 69 | 6½J | |
| GRIP 20 | 205/70R15C | 106/104 | S | 8 | 8.1 | 450 | 65 | 6J | |
| GRIP 20 | 215/70R15C | 109/107 | S | 8 | 8.1 | 450 | 65 | 6½J | |
| GRIP 20 | LT215/75R15 | 100/97 | S | 6 | 8.5 | 350 | 51 | 6J | |
| GRIP 20 | LT235/75R15 | 104/101 | S | 6 | 8.5 | 350 | 51 | 6½J | |
| GRIP 20 | 195/75R16C | 107/105 | S | 8 | 9.0 | 450 | 65 | 5½J | |
| GRIP 20 | LT245/75R16 | 120/116 | S | 10 | 8.5 | 550 | 80 | 7J | |
| GRIP 20 | 215/75R16C | 113/111 | S | 8 | 11.0 | 450 | 65 | 6J | |
| GRIP 20 | LT235/85R16 | 120/116 | S | 10 | 8.5 | 575 | 83 | 6½J | |
| GRIP 20 | 195/65R16C | 104/102 | S | 8 | 9.0 | 475 | 69 | 6J | |
| GRIP 20 | 205/65R16C | 107/105 | Q | 8 | 11.0 | 450 | 65 | 6J | |
| GRIP 20 | 215/65R16C | 109/107 | Q | 8 | 8.5 | 450 | 65 | 6½J | |
| GRIP 20 | 235/65R16C | 115/113 | S | 8 | 8.5 | 450 | 65 | 7J | |
| GRIP 20 | 225/70R16C | 102/99 | S | 6 | 8.5 | 350 | 51 | 6½J | |
| GRIP 20 | 185/75R16C | 104/102 | S | 8 | 9.0 | 450 | 65 | 5J | |
| GRIP 20 | 205/75R16C | 110/108 | S | 8 | 11.0 | 450 | 65 | 5½J | |
| GRIP 20 | LT225/75R16 | 118/116 | S | 10 | 8.5 | 525 | 76 | 6J | |
| GRIP 20 | LT265/75R16 | 123/120 | S | 10 | 8.5 | 550 | 80 | 7½J | |
| GRIP 20 | 195/60R16LT | 99/97 | Q | 6 | 8.5 | 350 | 51 | 6J | |
| GRIP 20 | LT225/75R16 | 115/112 | S | 10 | 8.5 | 550 | 80 | 6J | |
| GRIP 20 | LT245/75R16 | 120/116 | S | 10 | 8.5 | 550 | 80 | 7J | |
| GRIP 20 | LT235/85R16 | 120/116 | S | 10 | 8.5 | 550 | 80 | 6½J | |
| GRIP 20 | 235/85R16LT | 120/116 | Q | 10 | 8.5 | 550 | 80 | 6½J | |
| GRIP 20 | LT245/70R17 | 119/116 | S | 10 | 8.5 | 550 | 80 | 7J | |
| GRIP 20 | LT265/70R17 | 121/118 | S | 10 | 8.5 | 550 | 80 | 8J |
